Teflon (PTFE) Shields
| Material | PTFE |
|---|---|
| Max. Temperature | 232 °C |
| Flange Ratings | ANSI 150 – 600lb DIN PN6 – PN64 BS Table A – T |
| Sizes | ¼” – 24” + |
| Joint/Connection type | Flanges, Valves, Couplings, Elbows, Tees & more |
| Leak Detection | Included (PH dependent) |
| Typical Applications | Oil (fuel, lube, seal) Acids, Caustics, Corrosives Flanges, Elbows, Tees, Valves |

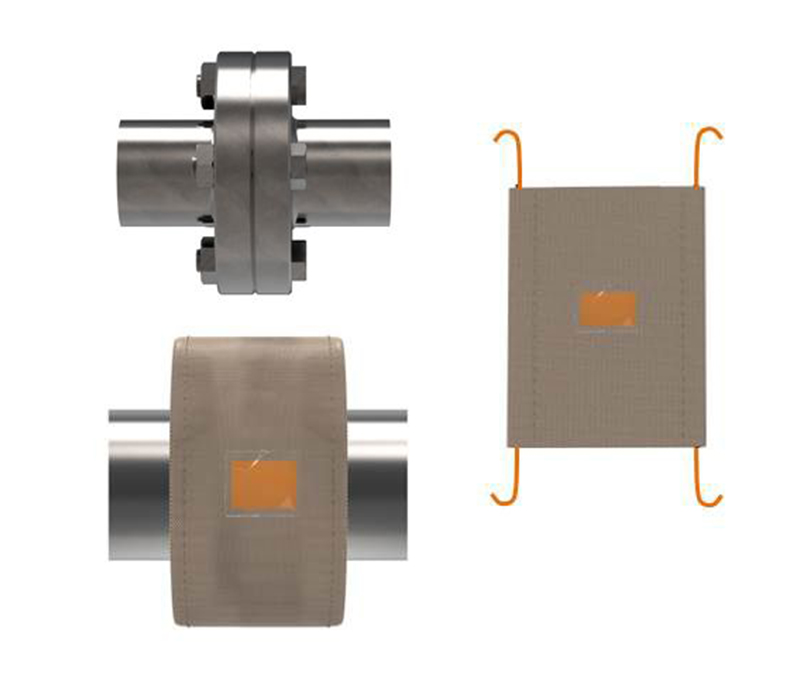

The PTFE guard is manufactured from 3 layers of woven Teflon coated fibreglass fabric with a central Teflon scrim for strength. This material is inherently resistant to Ultra-Violet radiation & is ideally suited to concentrated acid & caustic duty as well Fuel / Lube oil.
- Central Teflon Scrim
- Permeable Teflon PTFE
- Litmus Strip
- Re-Usable
- UV Resistant
- Ultra High Resistance to Most Corrosive Chemicals
- No Tools Required
