R Type

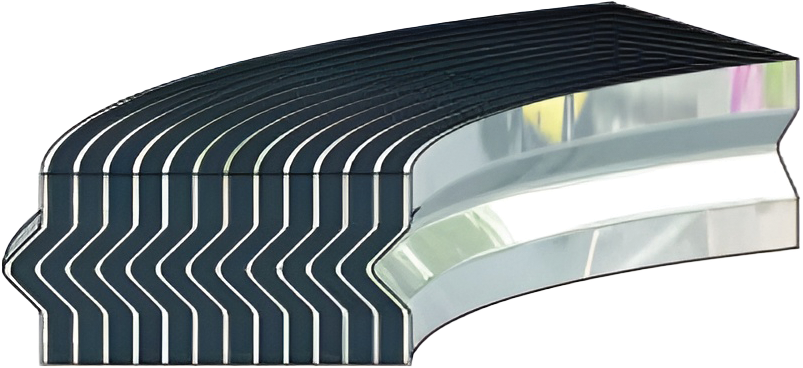

Style R spiral wound gasket with no accessory ring is suitable for tongue and groove applications and for operation with a compression stop. Given a gasket thickness of 4.5mm, a groove depth of 3.3(+0.1)mm is recommended to provide the compression stop.
